Conductivity Level Sensors:

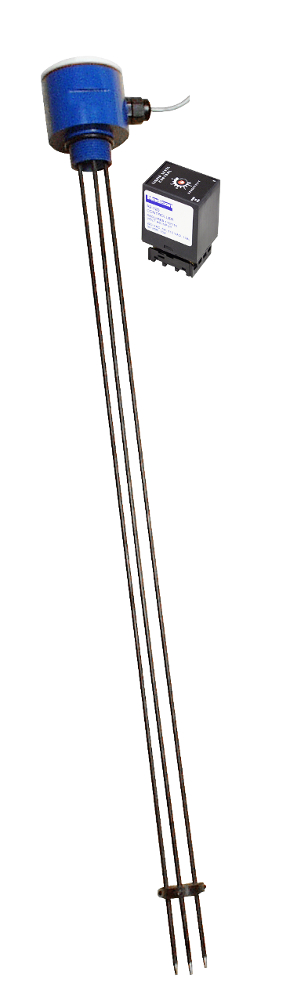

Conductivity Probe Setwith R2-24 Level Controller
- 24" (Standard); 72" (Maximum, with two extensions).
- Custom lengths made to order.
- Semi-solid liquids, industrial slurries and wastewater
- 316 Stainless Steel electrodes; Polypropylene housing.
Conductivity Probe Setwith R2-120 Level Controller
- 24" (Standard); 72" (Maximum, with two extensions).
- Custom lengths made to order.
- Semi-solid liquids, industrial slurries and wastewater
- 316 Stainless Steel electrodes; Polypropylene housing.
Conductivity Probe Setwith R2-220 Level Controller
- 24" (Standard); 72" (Maximum, with two extensions).
- Custom lengths made to order.
- Semi-solid liquids, industrial slurries and wastewater
- 316 Stainless Steel electrodes; Polypropylene housing.
Conductivity Sensor Probe KitIntegral junction box with IP68 (NEMA 6) protection
- 24" (Standard); 72" (Maximum, with two extensions).
- Custom lengths made to order.
- Semi-solid liquids, industrial slurries and wastewater
- 316 Stainless Steel electrodes; Polypropylene housing.

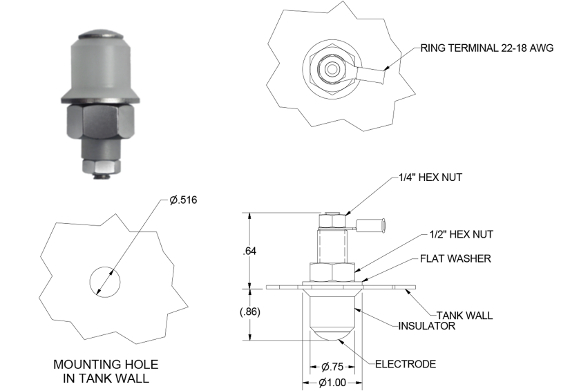

Single Point Conductivity ProbeMax Temperature 221°F (105°C)
- Mounts directly in tank wall
- No moving parts
- Semi-solid liquids, industrial slurries and wastewater
- 316 Stainless Steel and Polypropylene
Conductivity Sensor Specifications
| Model | Input Voltage | Max. Pressure | Max. Temp | Mounting | Pump Level Controller |
|---|---|---|---|---|---|
| M3784-110 | 110 VAC | 30 PSI | 212°F (100°C) | 1” NPT | R2-120 Level Controller |
| M3784-220 | 220 VAC | 30 PSI | 212˚F (100˚C) | 1” NPT | R2-220 Level Controller |
| M3784-2 | N/A | 30 PSI | 212°F (100°C) | 1” NPT | No Controller |
| M3784-24 | 24 VAC | 30 PSI | 212˚F (100˚C) | 1” NPT | R2-24 Level Controller |
| M3850 | N/A | 30 PSI | 221°F (105°C) | 1/2-13 UNC | No Controller |
| Protection Techniques and Common Failure Modes | |||||
|---|---|---|---|---|---|
| Load | Load Example | Protection | Diagram | Common Failure Modes | Failure Mode Description |
| Resistive (DC) | Indicator Lamp, Heaters | Current Limiting Resistor | In-rush Current (Switching) | In-rush current exceeds rating and welds switch closed | |
| Over-Current (Carry) | Carry-current exceeds rating and switch welds or burns open like a fuse | ||||
| Inductive & Capacitative (DC) | Relay Coil, Solenoids, Motor | Reversing Diode | Over-Voltage (Arcing) | Voltage arcing during switching weldscontacts closed | |
| Inductive & Capacitive (AC or DC) | Resistor & Capacitor Network | ||||
| Resistive, Inductive & Capacitive (AC or DC) | Indicator Lamp, Heaters, Relay Coil, Solenoids, Motor | Varistor or MOV | Over-Voltage (Arcing) | Transients voltage spikes exceed breadown voltage and weld switch closed | |
