Derex, Inc.

Flow Control and Piping Systems Solutions


Ultrasonic Transit Time, Doppler and
Hybrid Flow Meter Rental and Sales

(Portable or Mounted)

Ultrasonic Flow Meters strap to the outside of the pipe, there is nothing inside the pipe at all.

We are your source for a variety of processing equipment.

We rent portable ultrasonic hybrid (transit time / Doppler)
flow meters to measure liquid flow.

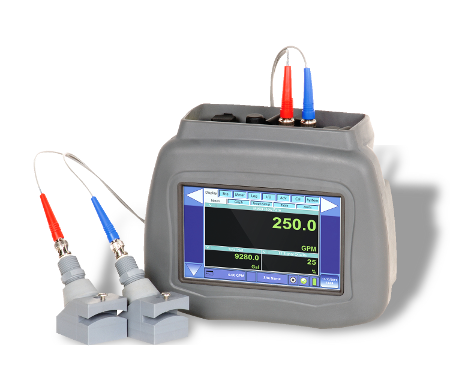

The DXN: Portable Hybrid
Transit Time/Doppler Ultrasonic Flow Meter

Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
Automatically switches between Transit Time and Doppler technology
in response to changes in the liquid media in the pipe.
  • Rate and total display
  • 1 GB internal data logging
  • Modbus TCP/IP via Ethernet
  • Site specific parameters
  • Full touchscsreen keyboard
  • Full color WVGA display
  • IP65 Enclosure
  • Rechargeable Li-ion Battery
  • Pipe sizes 1/2" to 100"
Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
RENT IT
PURCHASE IT

TFXB: Transit Time Ultrasonic Flow Meter

Dynasonics TFX Ultra Transit Time Flow Energy Meter
Dynasonics Ultralink Software
Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
Wall mountable, Integral or Remote Transducers, Optional RTD Thermal Sensors
  • Large digital display
  • Bi-directional measurement
  • Modbus RTU and BACnet® MS/TP over RS485
  • Rugged, aluminum enclosure
  • Certified for hazardous area installation
  • 4-20mA Output
  • USB Programming Port
  • 0-1,000 Hz Rate Pulse and Dual Alarm Outputs
  • Pipe sizes 1/2" to 100"
  • Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow Meter
    PURCHASE IT
    Derex, Inc.

    DEREX has over 50 years experience
    working with process equipment related to piping systems.

    We rent and furnish Ultrasonic Flow Meters for thousands of flow applications.
    We have furnished equipment for many process applications including:
    • Pressure Relief Valves
    • Rupture Pin Valves
    • Heating Cable /Tape /Blankets
    • Oil Filters
    • Control Valves
    • Igniters
    • Camera's
    Dynasonics DXN Portable Hybrid Transit Time Doppler Ultrasonic Flow MeterDEREX services the process industries including:
    • Petroleum
    • Chemical
    • Water/Wastewater
    • Pulp/Paper
    • Power
    • Food

    How Ultrasonic Flow Meters Work:



    (http://en.wikipedia.org/wiki/Ultrasonic_flow_meter)
    An ultrasonic flow meter is a type of flow meter that measures the velocity of a liquid or gas (fluid) by using the principle of ultrasound. Using ultrasonic transducers, the flow meter can measure the average velocity along the path of an emitted beam of ultrasound, by averaging the difference in measured transit time between the pulses of ultrasound propagating into and against the direction of the flow. Ultrasonic flow meters are affected by the temperature, density and viscosity of the flowing medium. They are inexpensive to use and maintain because they do not use moving parts, unlike mechanical flow meters.
    Ultrasonic flow meters measure the difference of the transit time of ultrasonic pulses propagating in and against flow direction. This time difference is a measure for the average velocity of the fluid along the path of the ultrasonic beam. By using the absolute transit times both the averaged fluid velocity and the speed of sound can be calculated.
